Airbags are a critical component of modern automotive safety systems. When discussing vehicle safety, airbags are often one of the first features that come to mind. They serve to cushion occupants in the event of a collision, thereby reducing the risk of injury. Understanding how airbags deploy involves exploring the intricate engineering and technology that make them function effectively in the critical moments of a crash.
An airbag system is typically comprised of a few key components: the airbag module itself, crash sensors, and an electronic control unit (ECU). The airbag module is what most people recognize as the actual "bag." When not deployed, the airbag is folded and stored within a compartment, usually located within the steering wheel for the driver and within the dashboard or other areas for passengers. These modules contain a thin, nylon fabric bag and inflation system such as a gas inflator.
The sensors play a crucial role in airbag deployment. These sensors are strategically placed around the vehicle to gauge the severity and occurrence of a collision. They are highly sensitive to sudden decelerations typically indicative of a crash. The sensors will detect when the vehicle experiences these abrupt forces, sending data to the ECU to evaluate the situation.
The heart of the airbag deployment mechanism is the electronic control unit, which processes information coming from the sensors. The ECU continuously monitors signals for any signs of a collision. When it receives a signal that indicates a severe impact, the ECU quickly processes this information to decide whether to deploy the airbag. This decision must be made in milliseconds, which highlights the precision and speed with which modern airbag systems need to operate.
Once the processors determine that deployment is necessary, a signal is sent to the inflator system within the airbag module. The inflator is designed to rapidly fill the airbag with gas, typically nitrogen, to form a cushion between the vehicle occupant and the hard surfaces inside the car.
The chemical reaction that inflates the airbag is a crucial process. Inside the inflator is a small amount of sodium azide (NaN3) and other chemicals, including potassium nitrate (KNO3) and silicon dioxide (SiO2). When the ECU signals the need to deploy, an igniter kicks off a reaction that causes the sodium azide to decompose and release nitrogen gas quickly. In newer generations of airbags, other propellants and gases, like argon or carbon dioxide, might be used.

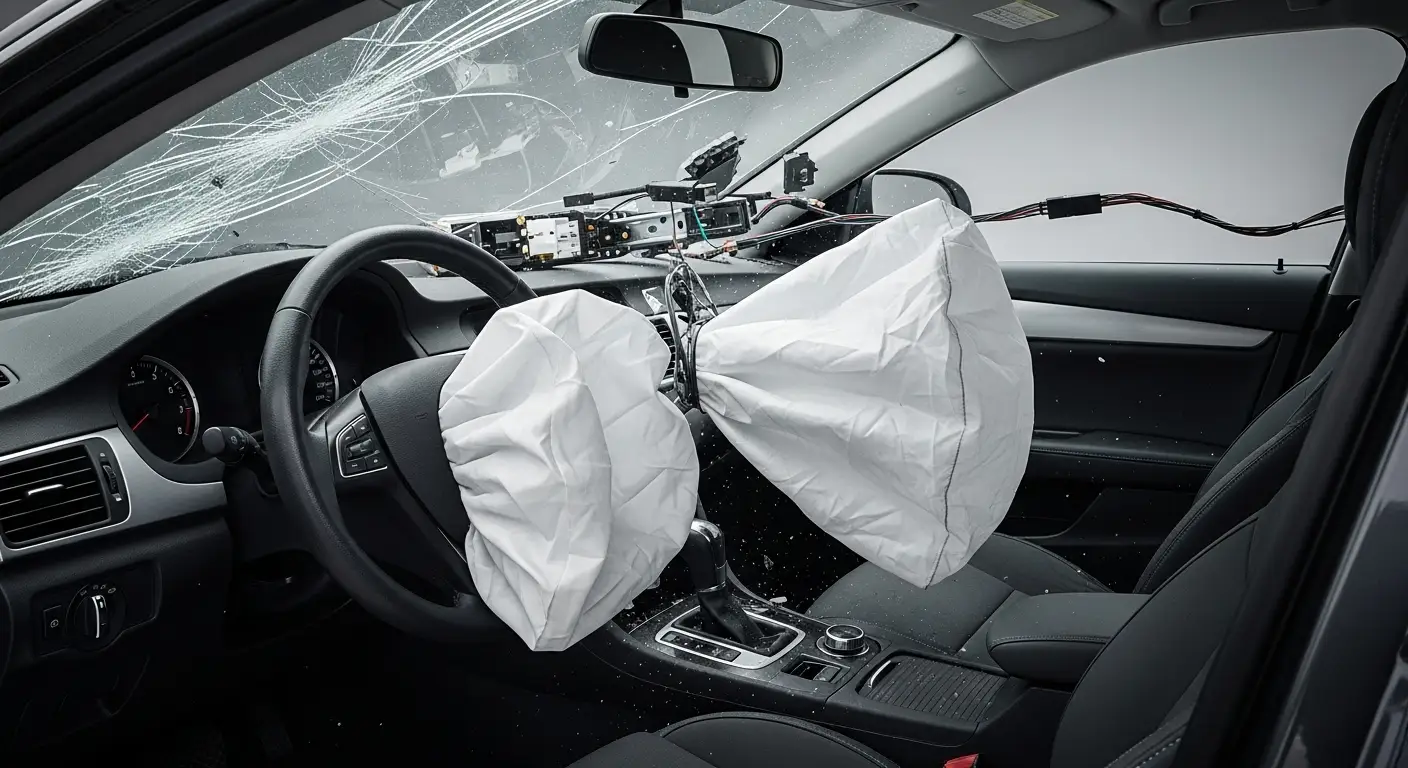

This rapid inflation process typically takes about 20 to 30 milliseconds from the moment of crash detection, allowing the airbag to inflate before the occupants begin moving significantly forward or sideways due to the collision forces. The fabric of the airbag itself has vent holes that allow the inflation process to occur smoothly while also controlling the internal pressure during deployment to effectively absorb the energy of the impact.
It is important to note the role of seatbelts in conjunction with airbags. Airbags are designed to work best in conjunction with seatbelts; they supplement the restraint provided by seatbelts, not replace them. The seatbelt holds the occupant in place, allowing the airbag to provide maximum protection by cushioning the impact and preventing the occupant from striking harder surfaces within the car.
Airbag systems have become more advanced over time, evolving from the initial concept into a variety of applications suitable for specific situations. In addition to front airbags, many vehicles today are equipped with side airbags, curtain airbags, and even knee airbags. Side airbags, for example, deploy to protect occupants in the event of a side collision, while curtain airbags can provide a cushion along the side windows, primarily protecting occupants' heads in both side crashes and rollover incidents.
Continuous advancements are being made in airbag technology. These advancements include improvements in the speed and effectiveness of deployment, the materials used in airbags, and the integration of sensors that offer a more sophisticated detection of collision conditions. Sensors may now include accelerometers, tilt sensors, or other technologies that contribute to making airbag systems even more responsive to specific types of accidents.
One of the future developments in airbag technology is the inclusion of external airbags that deploy outside the vehicle to mitigate the impact before it reaches the cabin. These systems are still undergoing testing and refinement but point toward the capacity for airbags to continue adapting to different safety challenges presented on the road.
While airbag deployment systems are highly effective at protecting passengers, it is essential for users to also consider the conditions and settings within their vehicles. Ensuring that airbags function properly involves regular maintenance of the vehicle’s safety systems and being mindful of manufacturer guidelines regarding things like weight limits, seat positioning, and the installation of child safety seats.
To sum up, understanding how airbags deploy provides insight into the remarkable engineering and technology that prioritizes passenger safety in modern vehicles. It's a symbiosis of physics, chemistry, and cutting-edge technology—all working together to save lives. As automotive technology continues to advance, airbags will undoubtedly remain a focal point of innovation, providing even more comprehensive protections for all vehicle occupants on the road.
